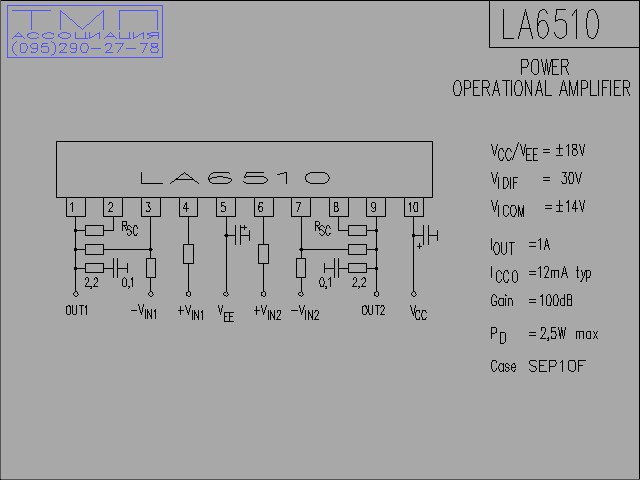

LA6510

                        POWER OPERATIONAL AMPLIFIER

                                 FEATURES
     - High Output Current
     - High Gain
     - With Current Limiter
     - Capable of being Operated from Single Supply

                              MAXIMUM RATING
     Maximum Sypply Voltage           +-18V
     Differencial Input Voltage         30V
     Common-Mode Input Voltage        +-14V
     Output Current                     1A
     Allowed Power Dissipation          2,5W
     Operational Temperature           -20...+75C

     OPERATING CHARACTERISTIC              min       typ      max
     Quiescent Current Dissipation          -        12mA      -
     Input Offset Voltage                   -        2mV       -
     Input Offset Current                   -        10nA      -
     Input Bias Current                     -        100nA     -
     Maximum Output Voltage                -15V               +13V
     Voltage Gain                           -        100dB      -
     Equivalent Input Noise Voltage         -        2mkV       -
